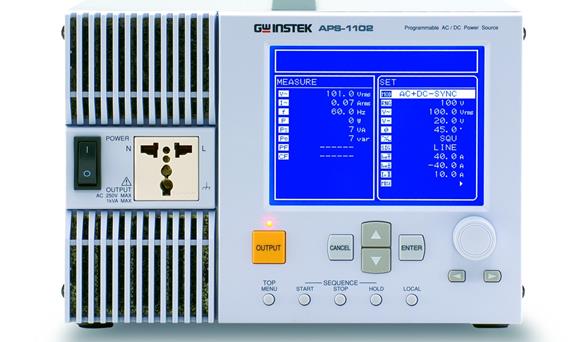

APS-1102交流/直流电源产品详细规格
5.7寸大LCD屏幕
输出能力：750VA（对于100V交流输入）/1KVA（对于200V交流输入）
输出模式：AC 和AC+DC模式，与四种信号源任意组合
信号类型：内部（INT），外部（EXT），内部+外部（ADD）和同步（SYNC）
任意波输出
外部信号功率放大器
测量功能：电压、电流、功率、功率因数、CF和谐波电流
支持电容输入负载
可编程的序列输出模式
限制功能（上限/下限）
30组保存/调取内存容量
输出On/Off功能
USB接口远程控制功能
| 规格 | |||
| MAXIMUM OUTPUT CAPACITY | |||
| AC | INPUT(100～180V) | 750VA | |
| INPUT(180～250V) | 1000VA | ||
| DC | INPUT(100～180V) | 750W | |
| INPUT(180～250V) | 1000W | ||
| OUTPUT VOLTAGE | |||
| AC | 100V | 0.0V～135.0V | |
| 200V | 0.0V～270.0V | ||
| DC | 100V | -190.0V～+190.0V | |
| 200V | -380.0V～+380.0V | ||
| OUTPUT MAX. CURRENT | |||
| AC | 100V | 10A | |
| 200V | 5A | ||
| DC | 100V | 10A | |
| 200V | 5A | ||
| OUTPUT MAXIMUM PEAK CURRENTS | |||
| 100V | 40Apk | ||
| 200V | 20Apk | ||
| FREQUENCY | |||
| SETTING RANGE | 1.0Hz～550.0Hz | ||
| SETTING ACCURACY | ±100ppm | ||
| WAVEFORM | |||
| SINE WAVE ,SQUARE WAVE,ARBITRARY WAVE(UP TO 16 TYPES CAN BE SAVED) | |||
| OUTPUT DISTORTION RATE | 0.5% MAX(50HZ/60HZ) | ||
| LINE VOLTAGE REGULATION | |||
| POWER INPUT VOLTAGE | 100V/120V/230V,no load ,rated output | ||
| LOAD VOLTAGE REGULATION RATE | |||
| 0.5% MAXIMIM(At output terminal under no load and rated resistance load) | |||
| MEASUREMENT | |||
| RANGE | RESOLUTION | ACCURACY | |
| FREQUENCY COUNTER | 1.0 ～550.0 Hz | 0.1Hz | ±100ppm(1.0 Hz to 550.0Hz) |
| RMS Volt-Meter(AC+DC) | Full Scale 100V：225.0Vrms | 0.1Vrms | ±0.5% of the full scale |
| Full Scale 200V：450.0Vrms | 0.1Vrms | ±0.5% of the full scale | |
| RMS Amp-Meter(AC+DC) | Full Scale 15.00A | 0.01Arms | ±1.0% of the full scale |
| Wattage Meter | Full Scale 1200W | 1W | ±2% of the full scale |
| Load Power Factor Measurement | 0.00 ～ 1.00 | 0.01 | |
| Load Crest Factor Measurement | 0.00 ～ 50.00 | 0.01 | |
| External Synchronization | 38.0～525.0Hz | 0.1HZ | ±0.2Hz |
| Frequency Measurement | |||
| Phase when output is on | 0.0°～359.9° | 0.1° | |
| External signal Input | |||
| Gain setting range | 100V range 0.0～200.0 times | 0.1 | ±5% |
| 200V range 0.0～400.0 times | 0.1 | ±5% | |
| OUTPUT MODE | |||
| ACINT Mode | V | ||
| AC-EXT Mode | V | ||
| AC-ADD Mode | V | ||
| AC-SYNC Mode | V | ||
| AC+DC-INT Mode | V | ||
| AC+DC-EXT Mode | V | ||
| AC+DC-ADD Mode | V | ||
| AC+DC-SYNC Mode | V | ||
| Memory | |||
| Store/Recall | 30 sets | ||
| POWER SOURCE | |||
| AC100V～230V±10%；50Hz / 60Hz ±2Hz | |||
| POWER CONSUMPTION/POWER FACTOR | |||
| 1.4kVA max / 0.95min(AC100V)0.9min(AC200V) | |||
| INTERFACE | |||
| USB(USBTMC) Standard | |||
| DIMENSIONS & WEIGHT | |||
| 258mm(W) X 176mm(H) X 440mm(D);APPROX :9.5 kg | |||
